Site Issue: The Generator Started, but Some Safety Systems Still Did Not Recover
Hospital facilities teams often ask: “The generator starts correctly, so why did fire pumps, elevators, water supply or some emergency lighting fail to recover during an outage drill?” The cause is often not the generator itself, but an incomplete review of low-voltage distribution, ATS scope, circuit labeling, breaker selection and startup sequence.
Safety loads cannot be evaluated like normal loads or by average running power alone. Fire and water pumps have high starting demand; elevators require evacuation and recovery strategies; emergency lighting, security and public address are widely distributed. Missing information at any stage can leave generator power available but unable to reach critical loads.
Configuration Review: Distribution Single-Line Diagram and Safety-Load List
Confirm which panels and breakers feed fire protection, security, emergency lighting, elevators, water supply, sewage and public-address systems; identify what is generator-backed and what relies only on UPS or emergency supply. Then determine recovery order from pump starting methods, elevator emergency strategy and ATS transfer-test records.
- Fire, sprinkler, water-supply and sewage pump data, including control-panel parameters.
- Elevator count, power, emergency operating strategy and whether all units are generator-backed.
- Circuit list for emergency lighting, public address, security, access control and fire-alarm control panels.

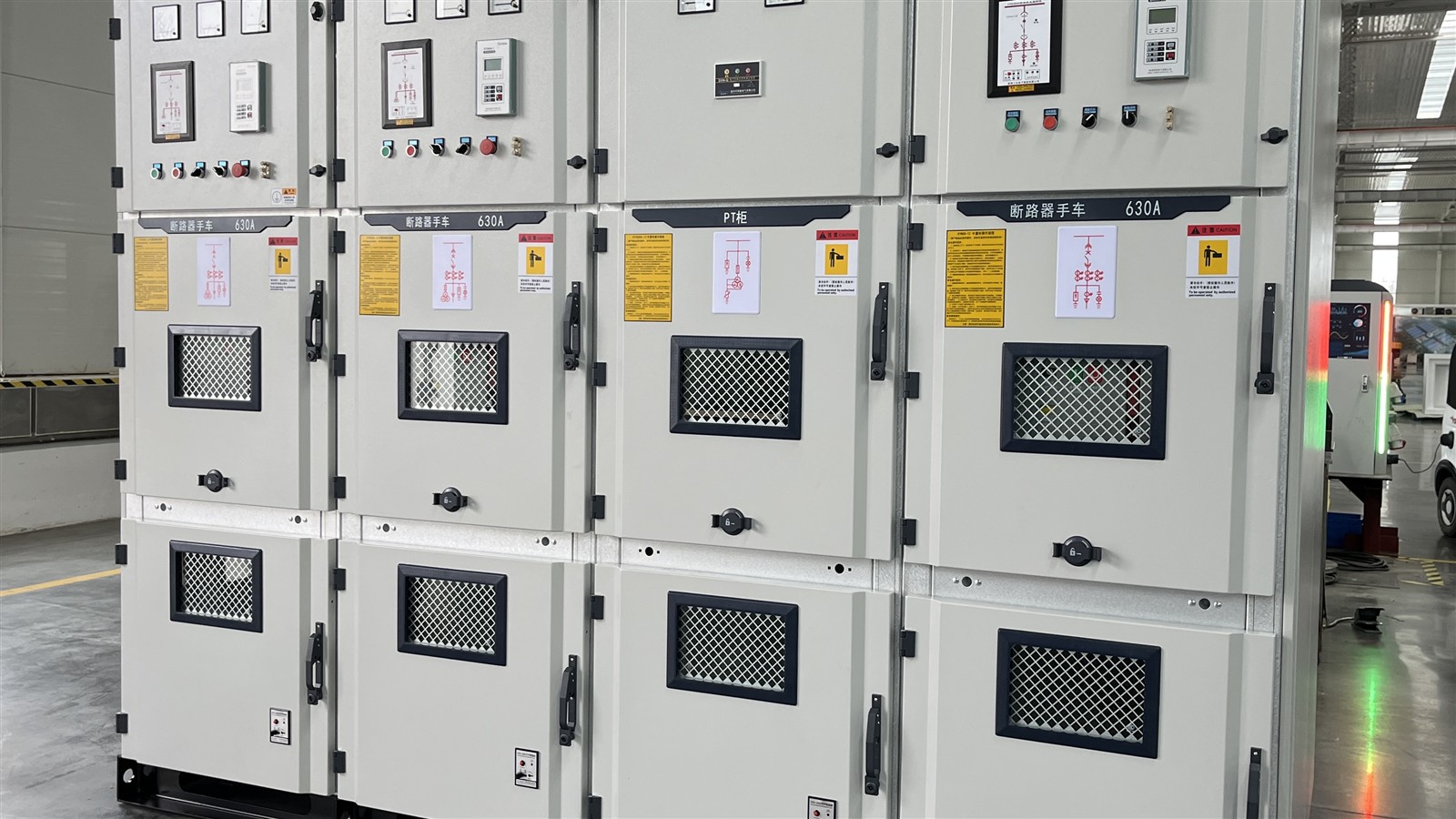

- Low-voltage single-line diagram, breakers, cables, grounding and circuit labels.
Why This Design: Safety Loads Must Avoid Simultaneous Starting and Circuit Confusion
Fire pumps, water pumps and elevators can all impose high starting demand. If they return simultaneously, generator voltage and frequency may become unstable. A more reliable approach zones by safety priority: fire protection and emergency lighting first, water pumps and essential elevators by strategy, and normal elevators or noncritical lighting after a delay.
The ATS must cover the safety loads that truly require backup; low-voltage panels need clear labels; generator sizing must account for pump starting demand; remote inspection must record operation, alarms and transfer status; and local inspection must cover breakers, grounding, pump controls, batteries, fuel and test records. A safety-load design must be verifiable—not merely marked “fire load included” on a quotation.
Review Documents: Safety Loads and Distribution Circuits
- List of fire, sprinkler, water-supply and sewage pumps, elevators and security systems.
- Pump and elevator nameplates, starting methods, control-panel photos and operating strategies.
- Low-voltage single-line diagram, ATS/panel photos, breaker ratings and cable specifications.
- Circuit descriptions for emergency lighting, public address, fire-alarm panels and access control.
- Latest drill, transfer-test and inspection records, plus fault and alarm data.
