Adequate generator output does not guarantee acceptable voltage at the load. Long or undersized cables, poor connections and mismatched protection can cause voltage dip, heating and trips during starting or heavy load.
First, Confirm Whether This Article Matches Your Project
Project teams with an existing or planned generator that need to verify ATS, distribution, cabling, critical loads and protection logic.
It separates symptoms, decision criteria, site inputs and engineering boundaries for distribution cabling.
An actionable single-line diagram, load priorities, protection boundaries, transfer logic and loaded verification plan.
Design must work backward from the load through the complete power chain. Generator, switchgear, busbars, cables and protection settings must be reviewed as one system.
Check 01
Why Cable Length Amplifies Starting Problems
Large-motor starting current through a long cable creates a much larger voltage drop than steady operation. Generator-terminal voltage may look normal while load voltage falls too low to start.
Record actual distance from the generator to each load and verify cable size, material and installation method. Separate starting from steady-state voltage drop and measure the voltage change at the load. Without written evidence, do not assume the feeder is adequate.
- Record Actual Distance from Generator to Each Load
- Verify Cable Size, Material and Installation Method
- Separate Starting and Steady-State Voltage Drop
- Measure Voltage Change at the Load
Check 02
A Larger Breaker Is Not Automatically Better
A breaker must satisfy rated current, short-circuit interrupting capacity, selectivity and cable protection. Settings that are too low nuisance-trip; settings that are too high can remove protection.
Verify rated current and interrupting capacity, then long-time, short-time and instantaneous settings. Document upstream/downstream selectivity and ensure settings do not exceed cable capacity. Without written evidence, do not assume protection is coordinated.
- Verify Rated Current and Interrupting Capacity
- Confirm Long-Time, Short-Time and Instantaneous Settings
- Check Upstream and Downstream Protection Selectivity
- Keep Protection Settings Within Cable Capacity
Check 03
Connections, Busbars and Neutral Conductors Can Be Weak Points
Loose or oxidized connections, phase imbalance and an undersized neutral can create local heating and abnormal voltage under load.
Check terminal torque and contact surfaces, and use thermal imaging under heavy load. Record three-phase currents and imbalance, then verify neutral, grounding and phase sequence. Without written evidence, do not assume connections are sound.
- Check Terminal Torque and Contact Surfaces
- Use Thermal Imaging to Check Heavy-Load Heating
- Record Three-Phase Currents and Imbalance
- Verify Neutral, Grounding and Phase Sequence
Check 04
What Data Should Be Verified at Handover?

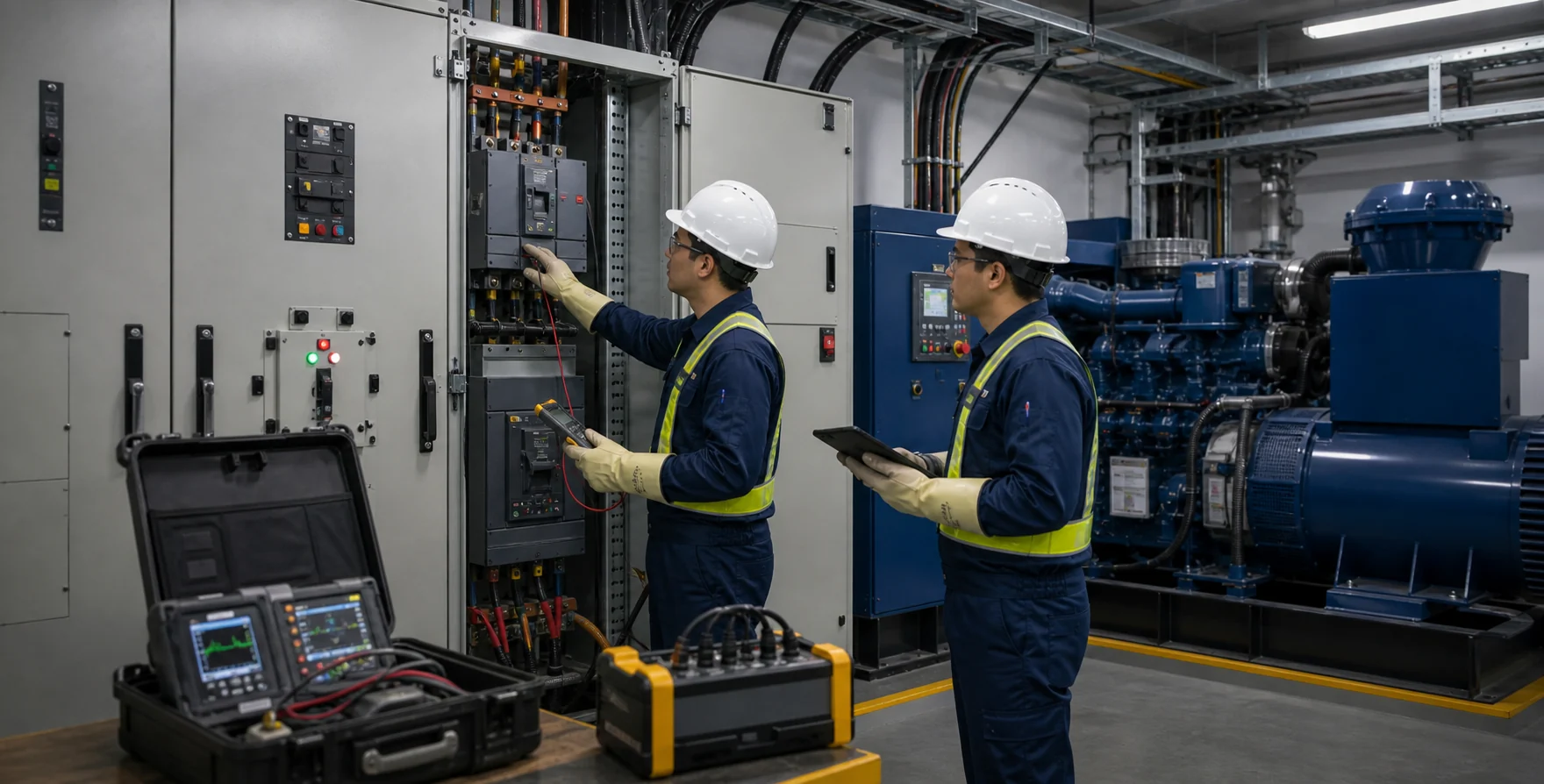

No-load energization does not prove the distribution path is usable. Critical points must be verified with planned loads or a load bank.
Record voltage and frequency at generator and load, and capture minimum starting voltage. Document breaker actions and alarms, plus temperature rise in cables, terminals and busbars. Without written evidence, do not assume the distribution path is accepted.
- Record Voltage and Frequency at Generator and Load
- Capture the Minimum Voltage During Starting
- Check Breaker Actions and Alarm Records
- Check Temperature Rise in Cables, Terminals and Busbars
Decision record
Put Each Decision in the Project Record, Not Just a Verbal Confirmation
Backup power is a complete chain from starting battery to load. The key question is not whether one device passes, but whether any single failure can remove power from critical loads.
| Decision Point | Prepare on Site | Confirm in Design or Acceptance |
|---|---|---|
| Why Cable Length Amplifies Starting Problems | Record Actual Distance from Generator to Each LoadVerify Cable Size, Material and Installation Method | Separate Starting and Steady-State Voltage DropMeasure Voltage Change at the Load |
| A Larger Breaker Is Not Automatically Better | Verify Rated Current and Interrupting CapacityConfirm Long-Time, Short-Time and Instantaneous Settings | Check Upstream and Downstream Protection SelectivityKeep Protection Settings Within Cable Capacity |
| Connections, Busbars and Neutral Conductors Can Be Weak Points | Check Terminal Torque and Contact SurfacesUse Thermal Imaging to Check Heavy-Load Heating | Record Three-Phase Currents and ImbalanceVerify Neutral, Grounding and Phase Sequence |
| What Data Should Be Verified at Handover? | Record Voltage and Frequency at Generator and LoadCapture the Minimum Voltage During Starting | Check Breaker Actions and Alarm RecordsCheck Temperature Rise in Cables, Terminals and Busbars |
Common Mistakes
These Shortcuts Leave the Risk Until After the Outage
Assuming Generator Start Means System Success
A running generator proves only that the set started. It does not prove ATS transfer, breaker stability, acceptable cable voltage drop or recovery of critical circuits.
Treating the ATS as Only a Switch
ATS operation includes source sensing, start command, stabilization delay, interlocking, retransfer and cool-down. Any logic gap affects recovery.
Ignoring Protection Selectivity
When upstream and downstream settings are not coordinated, a small downstream fault can trip an entire bus section and widen the outage.
Handover Check
At Minimum, the Project Should Retain These Deliverables
End customers do not need to perform every calculation, but they should receive clear documents and know what data supports each conclusion.
Power Single-Line Diagram
Show utility, standby source, ATS, busbars, breakers, cables and critical-load circuits.
Load-Priority Matrix
Define immediate recovery, delayed recovery and loads permitted to shed during an emergency.
Protection and Transfer Logic Schedule
Record protection settings, interlocks, start and retransfer delays, and abnormal-event handling.
Loaded Acceptance Record
Retain start time, transfer time, voltage, frequency, load factor, voltage drop and temperature-rise data.
